Which Porsche Clusters This Guide Applies To

This guide applies to Porsche 986 Boxster instrument clusters and Porsche 911 996.2 instrument clusters. It is intended specifically for surface bubbling, peeling, or blistering of the original gauge faces.

This guide does not cover LCD screen repair, electrical backlighting failure, or Porsche 997 needle wobble issues.

Common Signs of Bubbling or Peeling Gauge Faces

The problem usually starts as small raised areas, wrinkles, or bubbles on the surface of the dial. At first, the damage may appear minor, but over time it usually spreads. The top layer can continue to lift, peel, or develop an uneven texture that makes the cluster look worn and aged.

In many cases, the backlighting still works normally. The issue is mostly visual rather than electrical. What changes is the appearance of the dial surface, which no longer looks clean, smooth, or factory correct.

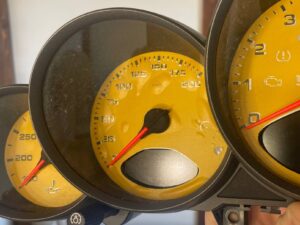

Typical bubbling and surface failure on an original Porsche gauge face.

Why Porsche 986 and 996.2 Gauge Faces Bubble

In real world use, this issue is most commonly associated with age, heat, UV exposure, and failure of the original surface layer. Cars that spend a lot of time in direct sunlight or hot climates often show the problem more severely.

Once the top layer starts to separate, the damage usually continues to develop. That is why cosmetic touch ups rarely hold up for long. They may improve the appearance temporarily, but they do not solve the underlying material failure.

Can Bubbling Be Fixed Without Replacing the Gauge Faces?

In most cases, no. If the original surface layer has already started bubbling or peeling, replacement is the proper long term solution. Trying to flatten the bubbles, hide them, or refinish the surface is usually temporary and often makes the result look worse.

Replacing the gauge faces is the clean and durable approach. It restores the appearance of the cluster properly and also gives you the option to keep an OEM-like look or switch to a custom design.

Is This a DIY Job?

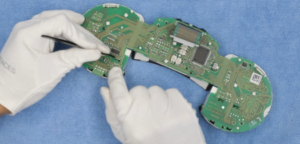

Yes. For most careful owners, this is a DIY-friendly job. It is not especially difficult from a mechanical point of view, but it does require patience, good lighting, a clean work area, and careful handling of the needles, clips, and ribbon connector.

For a first time installation, expect the work to take around 1.5 to 3 hours. The main risks are dust trapped under the lens, fingerprints on visible inner surfaces, broken clips, incorrect needle resting position, or rushing the reassembly.

Tools You Will Need

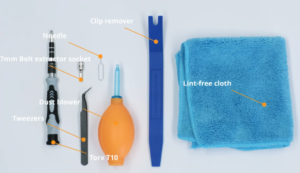

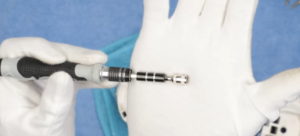

The basic tools needed are a needle tool, a 7 mm bolt extractor socket, a trim clip remover, a lint free cloth, a Torx T10 driver, tweezers, and a dust blower.

It also helps to have a clean padded work surface, good overhead lighting, and a plastic pry tool or spudger for clip release. Gloves are optional, but many owners prefer them to reduce fingerprints on inner surfaces.

Before You Start

Set up a clean table and make sure there is as little dust in the area as possible. This matters more than most people expect, because once the cluster is back together, even one small speck trapped under the lens can be visible.

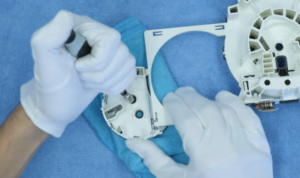

Before taking anything apart, study the needle positions and take clear reference photos. Work slowly when opening clips and connectors. Do not force anything. Most damage during a job like this happens because a part is rushed or pulled at the wrong angle.

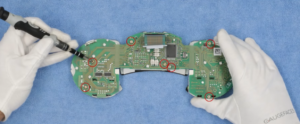

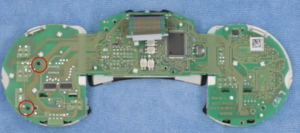

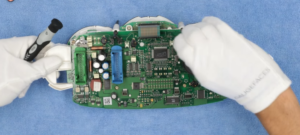

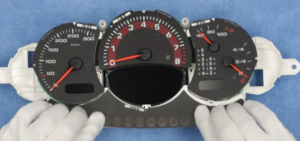

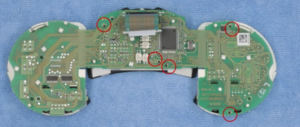

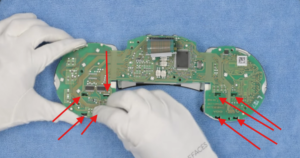

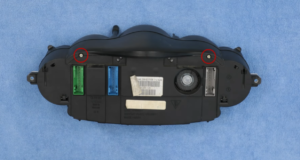

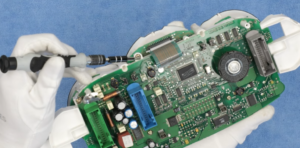

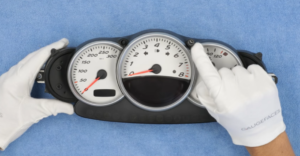

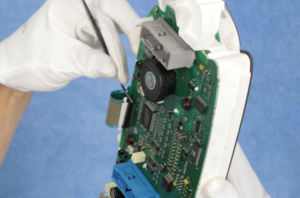

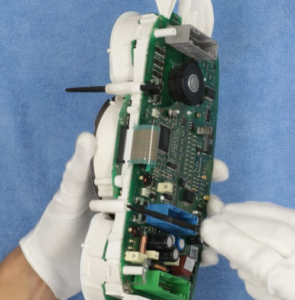

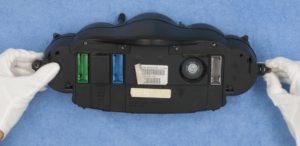

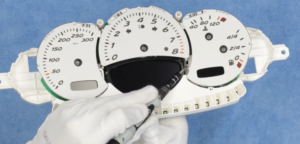

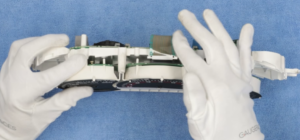

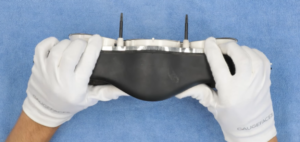

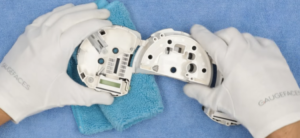

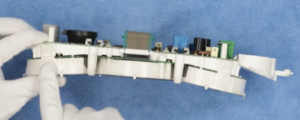

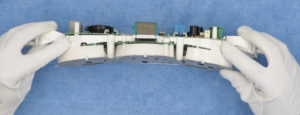

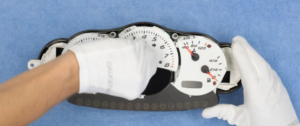

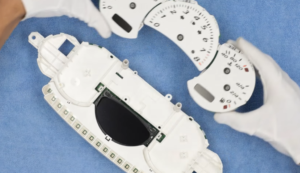

Step by Step Replacement Guide

Common Mistakes to Avoid

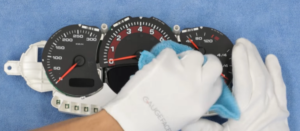

One of the most usual errors is to trap dust underneath the lens. Another one is to touch the visible inner parts with bare fingers which causes leaving marks that are very hard to get rid of once the cluster is closed.

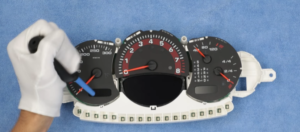

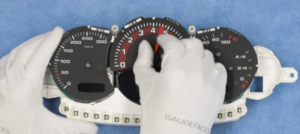

The third common mistake is to rush the needles. If the needles are not put back to their proper resting positions, then the cluster may still look quite nice visually but it will behave in a wrong way afterward. Last but not least, do not ever force clips or connectors. If one aspect does not feel right, then you need to stop and check it before proceeding with the operation.

OEM Look or Custom Design?

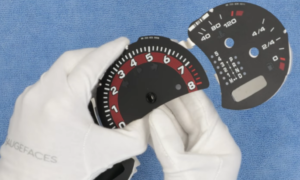

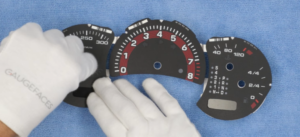

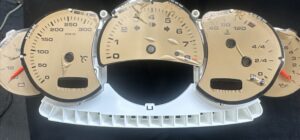

You do not necessarily have to alter the visual style of the car in your repair. In fact, most owners just want to bring back an original factory-like look and have the bubbling removed for good. On the other hand, some use that repair phase as a change to their cluster by picking a different color, increasing contrast, changing the units, or even creating their own design.
Either method is viable.

The main thing is that the new piece must be precise, well-made, and correctly fitted.

Final Thoughts

If your Porsche 986 Boxster or 911 996.2 gauge faces are bubbling or peeling, replacement is the right long term solution. It is cleaner, more reliable, and more professional than trying to hide the damage or temporarily flatten it.

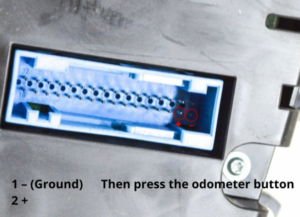

When done carefully, the result can look fully OEM-like and dramatically improve the appearance of the interior. Work cleanly, handle the needles and clips with care, and do not skip the test step before final installation.
